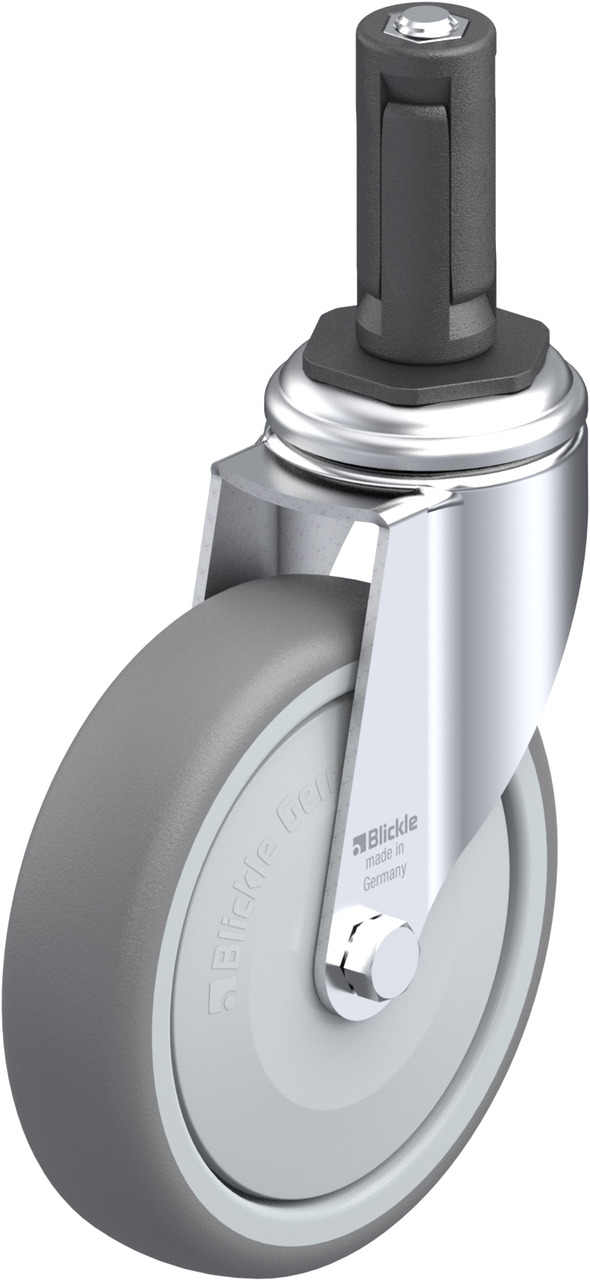

LKRA-TPA 126KF-11-ER13 Apparatus castor with bolt hole
€42.96 *
US$45.37
Product number:
BL 847911
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information "LKRA-TPA 126KF-11-ER13 Apparatus castor with bolt hole"
Apparatus castor with bolt hole, with expander made of plastic Wheel with thermoplastic rubber tread, with polypropylene wheel centre, with thread guard made of plastic, large
Enclosure: Series LKRA
- Sheet steel, electrogalvanised, blue passivated, Cr6-free
- double ball bearing in the swivel head
- sturdy centre bolt
- minimal play in the swivel head, smooth running, long service life due to special dynamic Blickle riveting
Wheel: TPA series
- Tread: high-quality thermoplastic rubber elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil-containing
- Wheel centre: High-quality polypropylene, break-resistant, colour silver-grey
Other features:
- with thread protection made of plastic, large
- very high chemical resistance to many aggressive media
- Temperature resistance: -20 °C to +60 °C, reduced load capacity above +30 °C
- Tread oily, contact discolouration possible on sensitive floors.Alternatives: Series VPA, VPP, POES, POEV, PATH
Properties "LKRA-TPA 126KF-11-ER13 Apparatus castor with bolt hole"
| Bearing type: | Ball bearing (C) |
|---|---|
| Colour tread: | grey |
| Colour wheel body: | silver-grey |
| Load capacity at 3 km/ (kg): | 120 |
| Material tread: | Rubber |
| Mounting type: | Back hole |
| Pad hardness: | 85 Shore A |
| Panel dimensions (mm): | 57 |
| Product type: | Swivel castor |
| Temperature resistance max (°C): | 60 |
| Temperature resistance min (°C): | -20 |
| Total height (mm): | 161 |
| Weight (kg): | 0.732 |
| Wheel body material: | high quality polypropylene |
| Wheel width (mm): | 32 |
| Wheel Ø (mm): | 125 |
| antistatic: | no |
| autoclavable: | no |
| heat-resistant: | no |
| hydrolysis-stable: | no |
| stainless: | no |
| without a trace: | yes |
