LKRXA-PATH 126G-11-EXR13 Stainless steel castor with back hole
€83.05 *
US$87.72
Product number:
BL 853476
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.

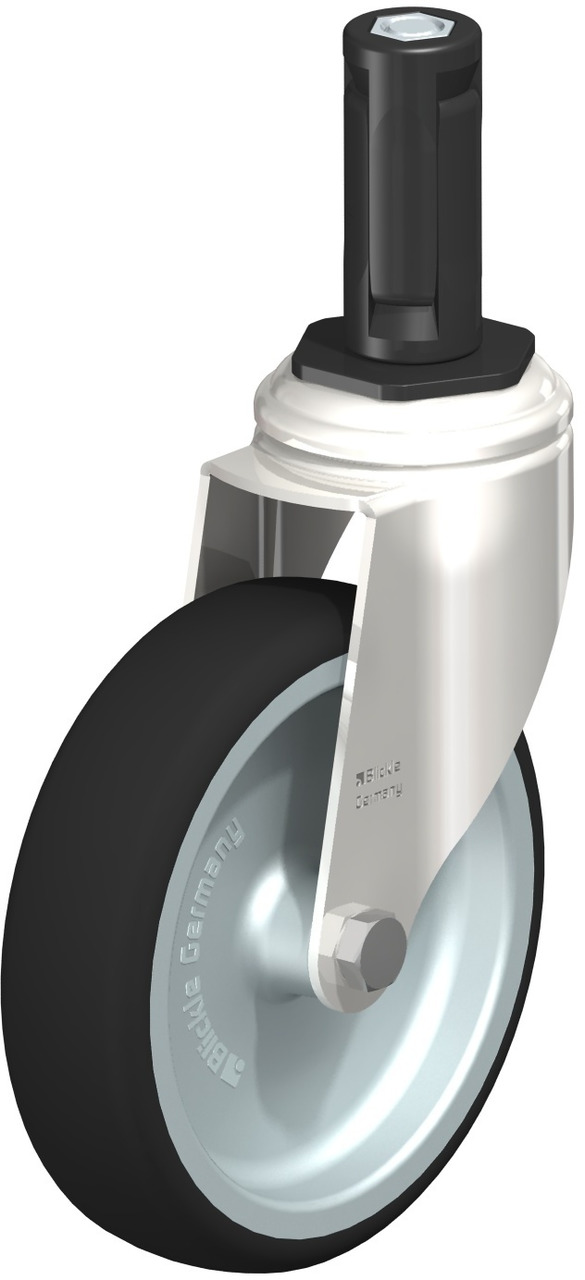

Product information "LKRXA-PATH 126G-11-EXR13 Stainless steel castor with back hole"
Stainless steel swivel castor with back hole, with plastic expander, wheel with thermoplastic polyurethane tread, with polyamide wheel centre
Housing: LKRXA series
- high-quality chrome-nickel steel (1.4301/AISI 304), stainless, slide-ground
- all individual parts including axle material are rust-resistant
- double ball bearings in the swivel head
- stable centre pin
- minimal swivel head play, smooth running, long service life thanks to special dynamic Blickle riveting
Wheel: PATH series
- Tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-contact discolouration
- Wheel centre: high-quality polyamide 6, break-resistant, silver-grey colour
Other properties:
- very high chemical resistance to many aggressive media
- Temperature resistance: -25 °C to +70 °C, briefly up to +90 °C, reduced load-bearing capacity above +35 °C
Properties "LKRXA-PATH 126G-11-EXR13 Stainless steel castor with back hole"
| Bearing type: | Plain bearing |
|---|---|
| Colour tread: | dark grey |
| Colour wheel body: | silver-grey |
| Load capacity at 3 km/ (kg): | 120 |
| Material tread: | Polyurethane |
| Mounting type: | Expander |
| Pad hardness: | 94 Shore A |
| Panel dimensions (mm): | 57 |
| Product type: | Swivel castor |
| Temperature resistance max (°C): | 70 |
| Temperature resistance min (°C): | -25 |
| Total height (mm): | 161 |
| Weight (kg): | 0.695 |
| Wheel body material: | high-quality polyamide 6 |
| Wheel width (mm): | 32 |
| Wheel Ø (mm): | 125 |
| antistatic: | no |
| autoclavable: | no |
| heat-resistant: | no |
| hydrolysis-stable: | no |
| stainless: | yes |
| without a trace: | yes |
