LKRXA-PATH 126KFD-11-EXR13 Stainless steel castor with back hole
€87.33 *
US$92.24
Product number:
BL 853498
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.

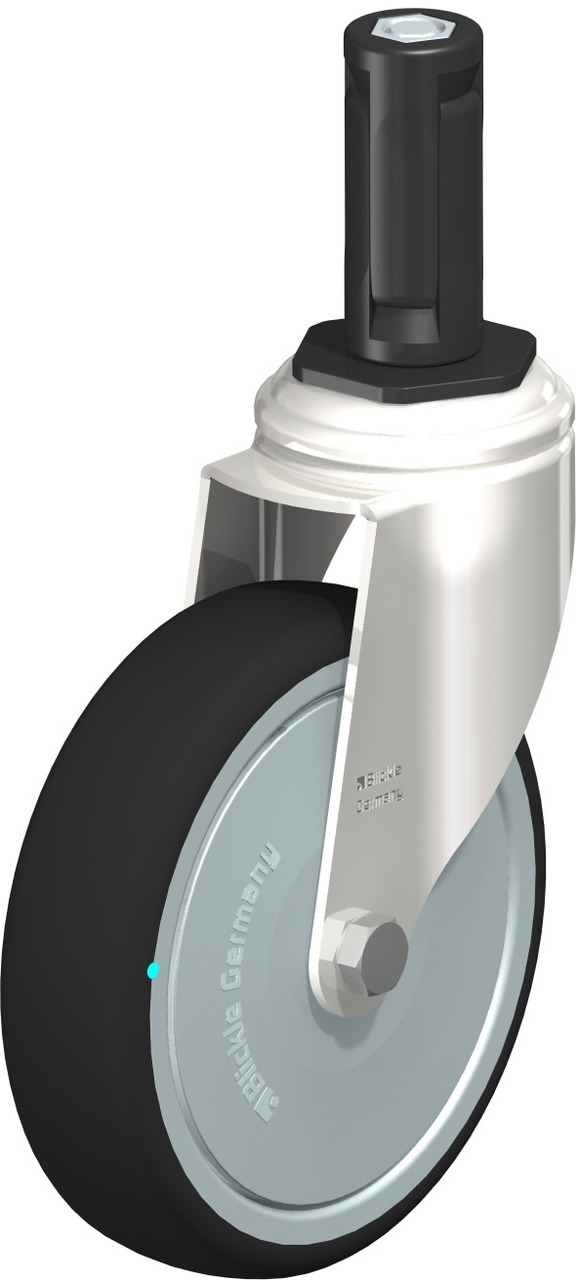

Product information "LKRXA-PATH 126KFD-11-EXR13 Stainless steel castor with back hole"
Stainless steel apparatus castor with back hole, with plastic expander, wheel with thermoplastic polyurethane tread, with polyamide wheel centre, with plastic thread guard, large, with additional ball bearing seal
Housing: LKRXA series
- high-quality chrome-nickel steel (1.4301/AISI 304), stainless, slide-ground
- all individual parts including axle material are rust-resistant
- double ball bearings in the swivel head
- stable centre pin
- minimal swivel head play, smooth running, long service life thanks to special dynamic Blickle riveting
Wheel: PATH series
- Tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-contact discolouration
- Wheel centre: high-quality polyamide 6, break-resistant, silver-grey colour
Other features:
- Thread guard, large, with additional ball bearing seal
- very high chemical resistance to many aggressive media
- Temperature resistance: -20 °C to +70 °C, briefly up to +90 °C, reduced load capacity above +35 °C
Properties "LKRXA-PATH 126KFD-11-EXR13 Stainless steel castor with back hole"
| Bearing type: | Ball bearing (C) |
|---|---|
| Colour tread: | dark grey |
| Colour wheel body: | silver-grey |
| Load capacity at 3 km/ (kg): | 120 |
| Material tread: | Polyurethane |
| Mounting type: | Expander |
| Pad hardness: | 94 Shore A |
| Panel dimensions (mm): | 57 |
| Product type: | Swivel castor |
| Temperature resistance max (°C): | 70 |
| Temperature resistance min (°C): | -20 |
| Total height (mm): | 161 |
| Weight (kg): | 0.754 |
| Wheel body material: | high-quality polyamide 6 |
| Wheel width (mm): | 32 |
| Wheel Ø (mm): | 125 |
| antistatic: | no |
| autoclavable: | no |
| heat-resistant: | no |
| hydrolysis-stable: | no |
| stainless: | no |
| without a trace: | yes |
